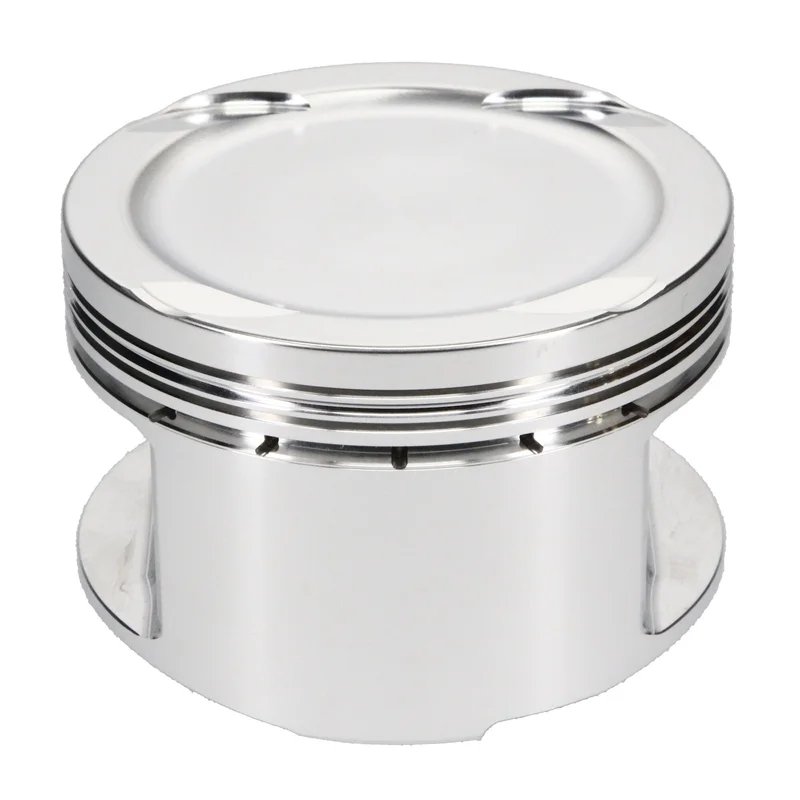

JE Pistons Toyota 3.976 in. Bore Single 321313S

Description

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.r

Attributes:

r

r
• GTIN: 00193564024978

r

• Brand Name: JE Pistons

r

• Bore Diameter: 101.00

r

• Compression Height: 1.653

r

• Cylinder Head: 1FZ-FE

r

• Engine: 1FZ-FE

r

• Forging Type: Round

r

• Industry: Automotive

r

• Make: TOYOTA

r

• Oil Ring Thickness: 0.111

r

• Out of Stock Message: Call for Availability

r

• Piston Avg Wt: 479

r

• Piston Head Type: Dish

r

• Piston Material: 2618

r

• Piston Pin Length: 2.500

r

• Piston Pin Material: 5115

r

• Piston Pin Outside Diameter: 1.024

r

• Piston Pin Wall Thickness: 0.200

r

• Piston Volume: -12.6

r

• Product Market: Sport Compact

r

• Ringset Included: Yes

r

• Second Compression Ring Thickness: 0.048

r

• Top Compression Ring Thickness: 0.04

r

• Add-On: JG1001-3976

r

• Add-On: 024-2500-20-51S

r

• Add-On: 031-042-CS

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 5.00 x 5.00 x 5.00 inches

r

• Weight: 1 lb
