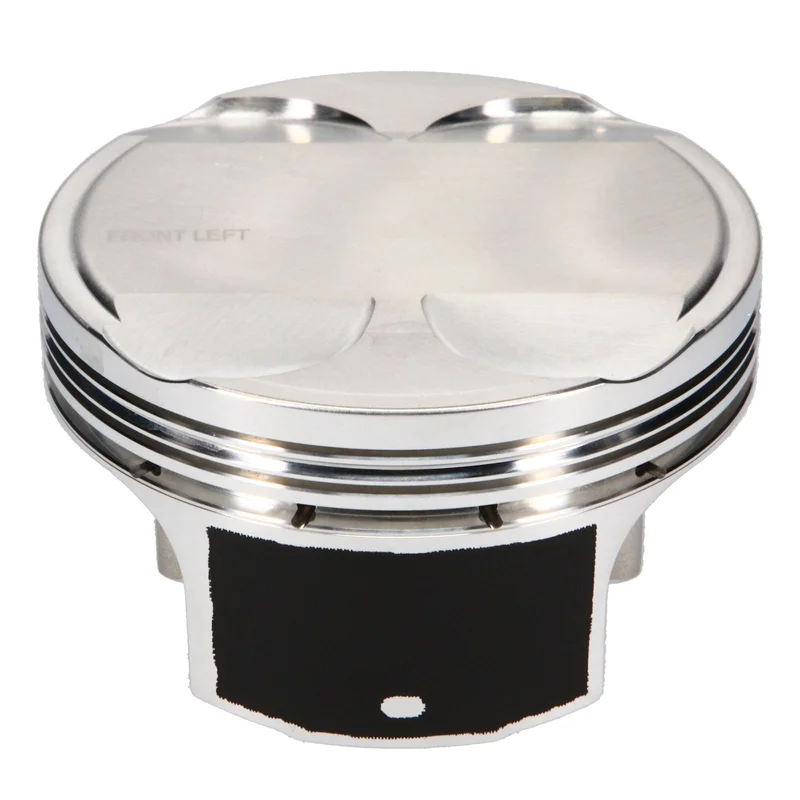

JE Pistons Ford 6.610 in. Bore Right 353906R

Description

JE Pistons Modular Ford piston line utilizes a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower engines. Lightweight and extremely durable, these pistons are machined for modern 1.0mm, 1.2mm, 2.8mm and 1.2mm, 1.5mm, 3.0mm rings.r

Attributes:

r

r
• GTIN: 00193564199102

r

• Brand Name: JE Pistons

r

• Add-On: JG1008-3661

r

• Add-On: 866-2250-18-51C

r

• Add-On: 866-063-MW

r

• Bore Diameter: 3.661

r

• Compression Height: 1.168

r

• Cylinder Head: MODULAR 5.0L COYOTE GEN 3

r

• Engine: MODULAR FORD

r

• Forging Type: FSR

r

• Industry: Automotive

r

• Make: FORD

r

• Oil Ring Thickness: 0.111

r

• Out of Stock Message: Call for Availability

r

• Piston Avg Wt: 389

r

• Piston Head Type: Dome

r

• Piston Material: 2618

r

• Piston Pin Length: 2.250

r

• Piston Pin Material: 5115

r

• Piston Pin Outside Diameter: 0.866

r

• Piston Pin Wall Thickness: 0.180

r

• Piston Volume: 7.08

r

• Product Market: Domestic

r

• Ringset Included: No

r

• Second Compression Ring Thickness: 0.048

r

• Top Compression Ring Thickness: 0.04

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 5.00 x 5.00 x 5.00 inches

r

• Weight: 1.4 lb
