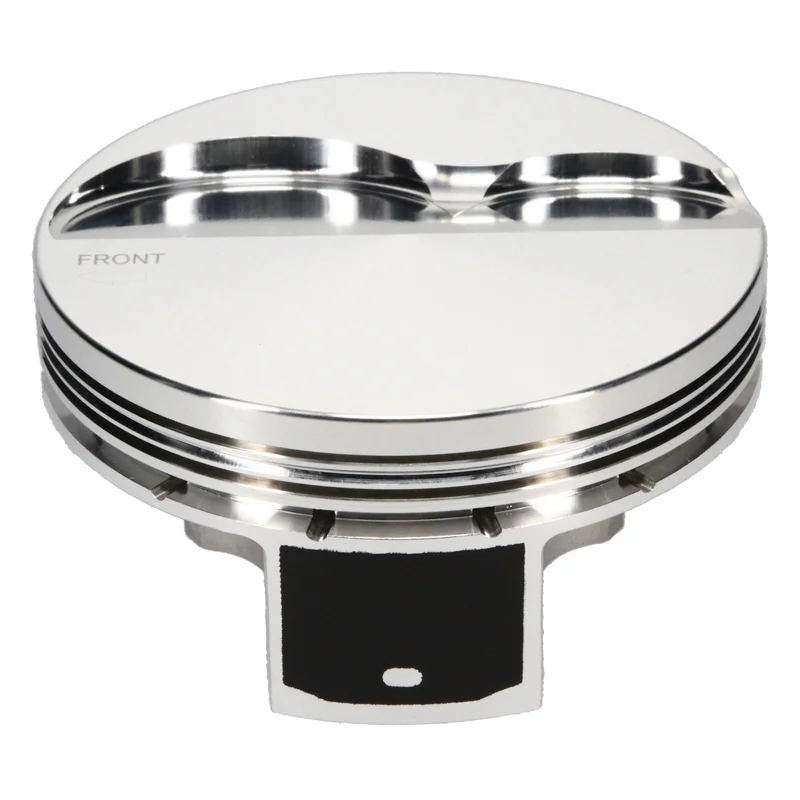

JE Pistons Chevrolet 4.135 in. Bore Right 312000R

Description

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.r

Attributes:

r

r
• GTIN: 00193564208675

r

• Brand Name: JE Pistons

r

• Add-On: JG31F8-4135-2

r

• Add-On: 927-2250-15-51C

r

• Add-On: 927-073-MW

r

• Bore Diameter: 4.135

r

• Compression Height: 1.065

r

• Cylinder Head: LS 12 DEG/15 DEG COMBO VR

r

• Engine: CHEVROLET LS GEN III/IV

r

• Forging Type: FSR

r

• Industry: Automotive

r

• Make: CHEVROLET

r

• Oil Ring Thickness: 0.149

r

• Out of Stock Message: Call for Availability

r

• Piston Avg Wt: 410

r

• Piston Head Type: Flat

r

• Piston Material: 2618

r

• Piston Pin Length: 2.250

r

• Piston Pin Material: 5115

r

• Piston Pin Outside Diameter: 0.927

r

• Piston Pin Wall Thickness: 0.150

r

• Piston Volume: -5

r

• Product Market: Domestic

r

• Ringset Included: No

r

• Second Compression Ring Thickness: 0.06

r

• Top Compression Ring Thickness: 0.048

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 5.00 x 5.00 x 5.00 inches

r

• Weight: 1.4 lb
