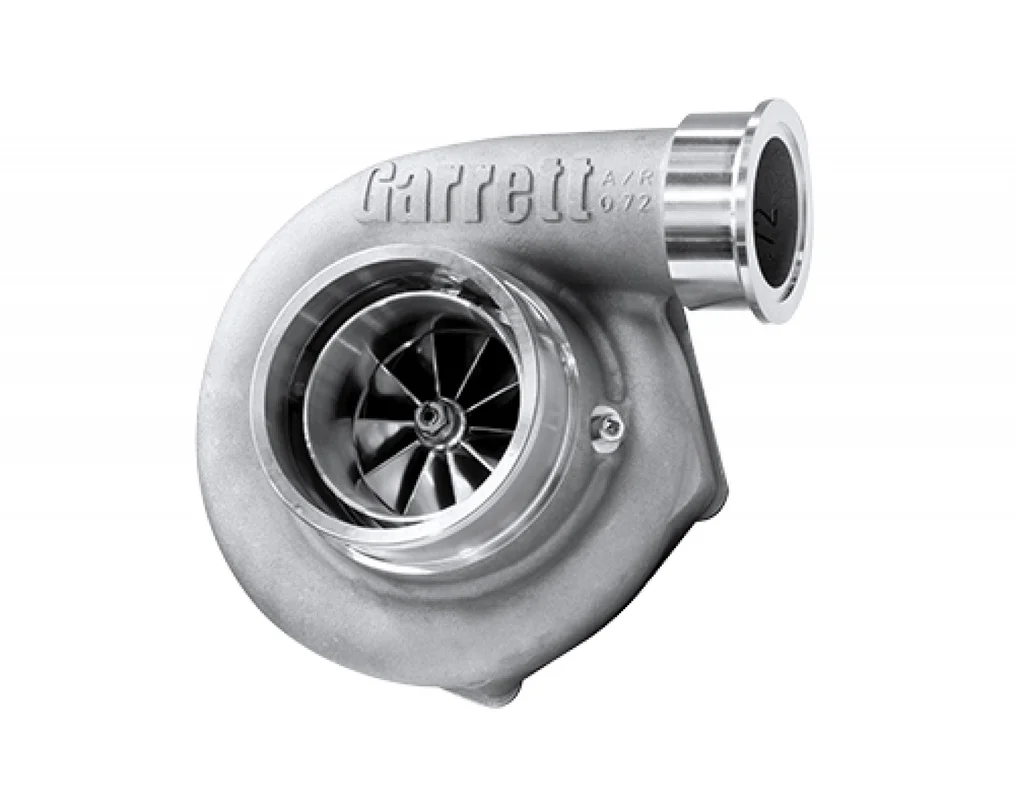

Garrett GTX3584RS Gen II Turbocharger Assembly Kit V-Band / V-Band 1.01 A/R 856804-5002S

Description

Horsepower: 550 – 1000

r

Displacement: 2.0L – 5.5L

r

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

r

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

r

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

r

Reference Data

r

r
• Compressor
  r
  r
  • Inducer 67mm

  r

  • Exducer 84mm

  r

  • Trim 64

  r

  • A/R 0.72

  r

  r

r

• Turbine
  r
  r
  • Inducer 68mm

  r

  • Exducer 62mm

  r

  • Trim 84
